As a professional supplier, we are able to design and build a line of brewing equipment with capacity of 1bbl to 50bbl or bigger. Good performance and high quality as well as favorable price have brought many good sales reference in and abroad in the past years.

Brewing equipment Feature:

All tank body use food grade material stainless steel 304 with good welding. The configuration of our brewhouse, can be arranged to be with 2 or more vessels according to the customer beer craft, mash tun /lauter tun/Kettle tank/whirlpool tank can be combined using for serving your beer craft. In the fermentation system, that is dimple plate cooling method, all tanks will be tested pressure before delivery.

Main Specifications of our brewery equipment:

Item Name	Specifications &Structure

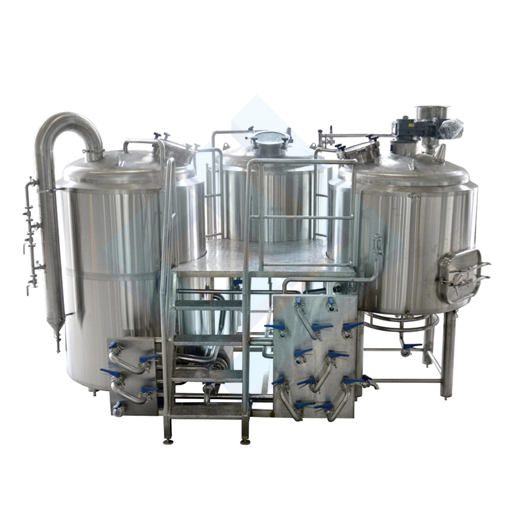

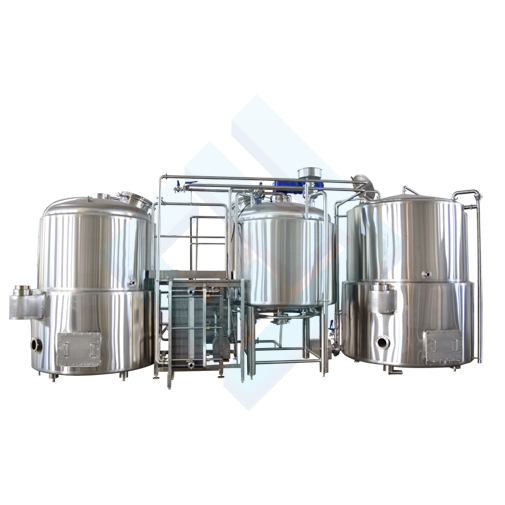

10BBL Three Vessels Brewing Equipment	Working Volume	10BBL
	Brewhouse Structure	3-vessel, mash Tun, Lauter Tun, kettle whirlpool tun
	Material	SUS304, food grade
	Heating style	by electric, by gas fired or by steam
	Thickness of Exterior shell	3mm
	Thickness of Interior shell	2mm
	Fermentation system	Fermenters, Bright tank, Glycol tank, and chiller etc.
	Control system	Semi-automatic with manual butterfly valves
	Insulation material	PU80mm
	Jacket	Yes
	All necessary fittings	CIP cleaning ball, pressure guage, thermometer, Carbonating stone, and adjustable feets as well as all necessary accessories.

Brewhouse Configurations

No. of vessels	2		3		4
Mash Tun				■	■	■
Mash / Lauter Tun	■		■
Lauter Tun				■	■	■
Combi-tank MLT+HLT		■
Brew Kettle Tun					■
Brew Kettle/Whirlpool	■	■	■	■		■
Whirpool Tun					■
Hot Liquor Tank			■			■
