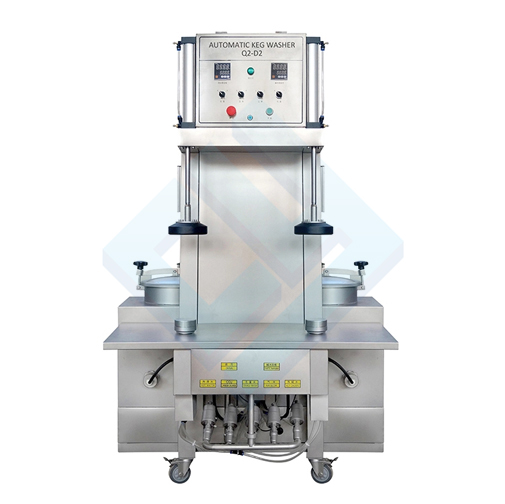

Q2-D2 Two-head automatic keg cleaning machine

1.General Introduction


It is an automatic machine to clean inside of beer kegs via using two cleaning heads. The kegs need to be located on the panel of keg washer manually, and then the whole cleaning process can be achieved automatic.

Our keg washer / Rinser can clean all sizes of stainless steel beer kegs, including 10 liter, 20 liter, 30 liter, 50 liter etc. Different style of keg spears are available for keg washer to suit. The capacity of our keg washer can be adjusted from 20 barrels to 120 barrels according to your specifications.

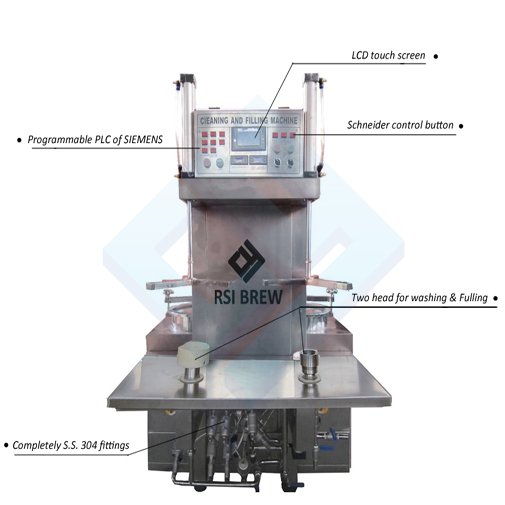

2.Features of keg washer / Rinser


1. All parameters (time values) can be adjusted without stopping machine.

2. Twin-acting pneumatic valve with reliable quality and anti-high temperature characteristic.

3. Maximum straight-line design on main cleaning pipelines makes sure the powerful and thorough scouring.
4. Adoption of world top products as main accessories makes sure premium quality.

5. Brand of components: SIMENS, AIRTAC, Schneider, etc.



Commodity nameAutomatic Two-head Keg Washer / Rinser
Dimension of working table1200 mm × 450 mm
Outside dimension

1200 mm × 1480 mm × 1900 mm

Net weight175kg.
Power Supply220V/50HZ/1P or customized
Capacity of washing80-120 barrels for 20L size
Cleaning heads2
Automatic or Manual oneAutomatic
Total Power3 kw
Pressure of CO2 source0.4~0.6 Mpa
Pressure of steam inlet0.15~0.20 Mpa
Heating styleSteam heater
CustomizedAllowed
