300L Multi-functional distillation Equipment

1. General Introduction

As a professional supplier, we are able to design and build a line of complete brewing and distillation equipment with customized capacity. Good performance and high quality as well as favorable price have brought many good sales reference in different markets, such as USA, Canada, Japan, Australia etc.



- Brewing equipment capacity: 1BBL ~ 80BBL.

- Distillation equipment capacity: 100L ~ 6000L.



2. Why choose us:

A. Food grade material, SUS304/2B and red copper with TUV/SGS certificate.

B. Multi-functional for Vodka, Brandy, Whiskey, Rum, Gin etc.

C. All distillation equipment can be customized.

D. Provide OEM & ODM service for ten years.

E. We have professional shipping team to ship your cargo if necessary.

F. Long terms warranty for our products, even 5 years.

3. Specifications & Description

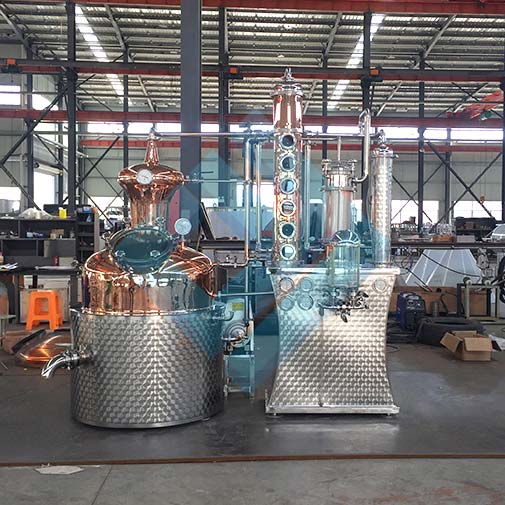

300L Multi-functional distillery

Item Name

Specifications & Structure

300Liter
  Multi-functional distillery

1×300L SUS304   & Red copper still pot.

1×red copper onion   still head.

1×5plates red   copper still columns with sight galss.

1×red copper Gin basket

1×red copper dephlegmater

1×SUS304 condenser

1×galss parrot outlet

1×SUS304 support frame with spirit tank inside

1×CIP pump and SUS304 sanitory pipeline

Be used for Whiskey,  Brandy, Gin.

Model

RSI-M300-1

Brand

RSI


4. Functional types

What can we do for wine Still

Distillery Style

Capacity

Consist of parts

Whiskey   distiller

100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot,Swan neck,   Condenser,CIP Pump, Pipeline

Vodka   distiller

100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot,Onion head,   Column,Dephlegmater,Condenser,Pipeline

Brandy   distiller

100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot,Onion head,   Column,Dephlegmater,Condenser,Pipeline

Rum distiller

100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot,   Column,Condenser,CIP Pump, Pipeline

Gin distiller


100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot, Column,Gin   basket,Condenser,CIP pump, Pipeline

Multi-spirits   distiller

100L,200L,300L,400L,500L,1000L   ... MAX.6000L

Still pot,Column,Onion   head,Dephlegmater,Gin basket,Condenser,CIP Pump,Pipeline,Spirit tank

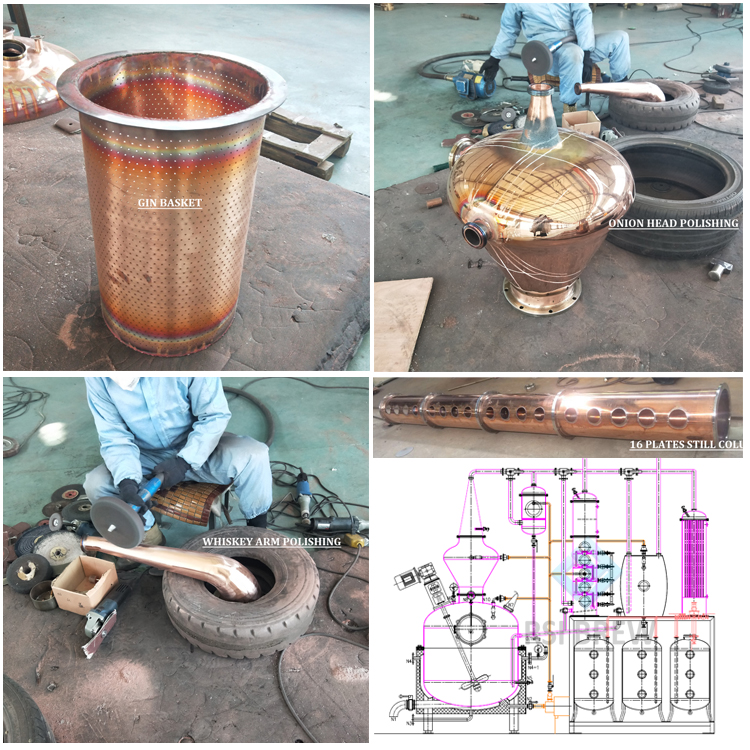

Production flow chart

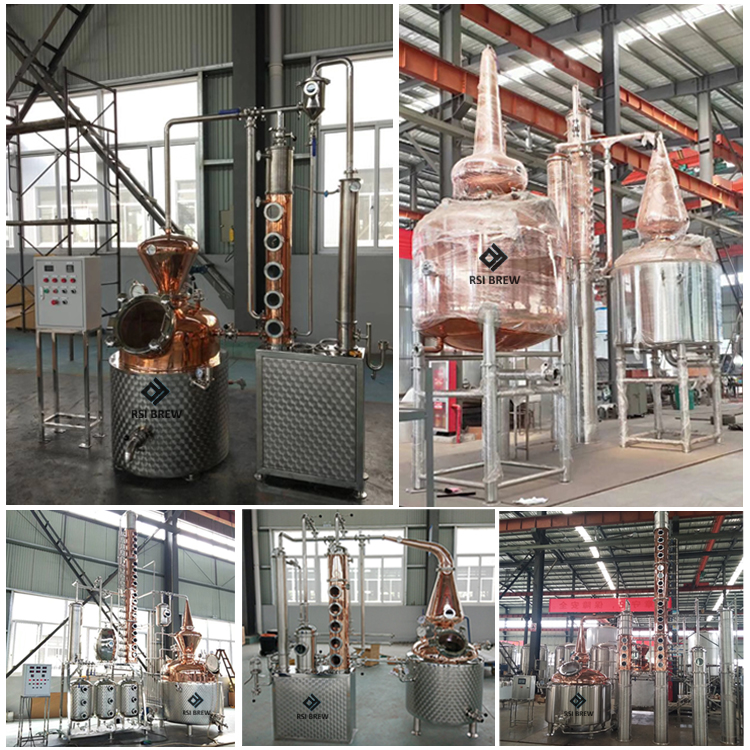

Finished Products showing

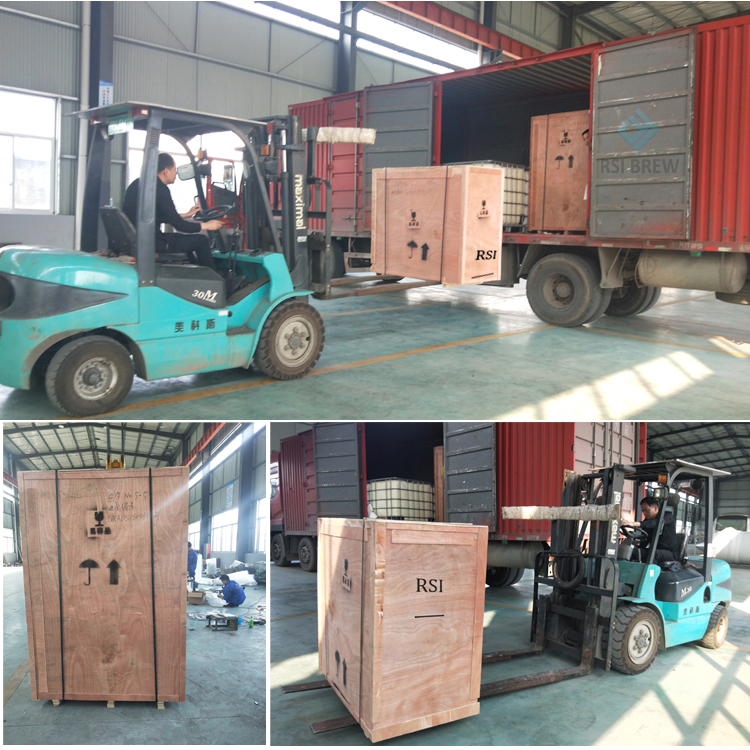

Loading and packing solutions
