General Introduction

Rain Star can design and produce completely distillation equipment as per client's needs or requirement. Quality-controlled materials, precised instruments, rich experience of professional engineers as well as favorable quote will ensure you are right place to collect distillation equipment for your distillery factory.

Feature

This kind of distillery is of very good cost effciency, which need a little investment only, which is a very good option for starting a business of small distillery or if you just want to distill good spirits to your friends or families. They occupy very small room space and can be opearted easily. It can be used for moonshine distilling of vodka, gin, whiskey, brandy as well as milk heating.

3. Specifications & Description

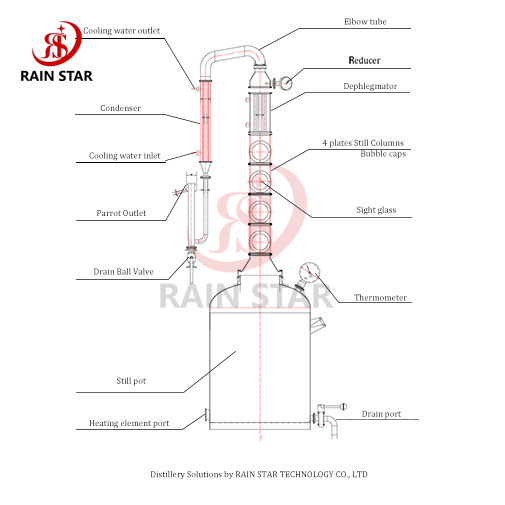

Item Name	Specifications & Structure

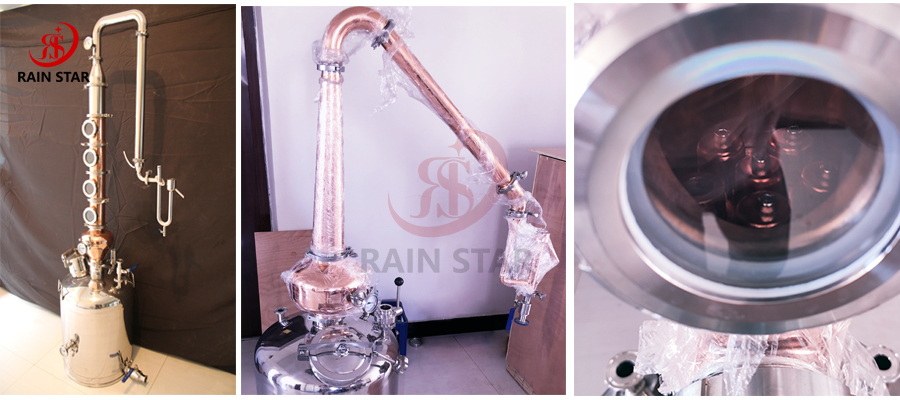

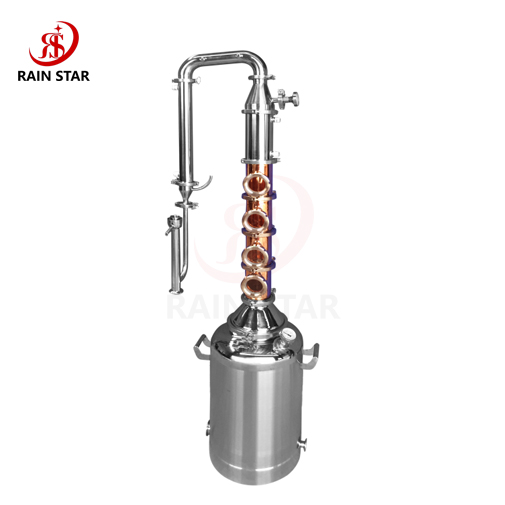

Home Alcohol distillation Equipment	SUS304 / Red copper still pot: 20L-200L capacity

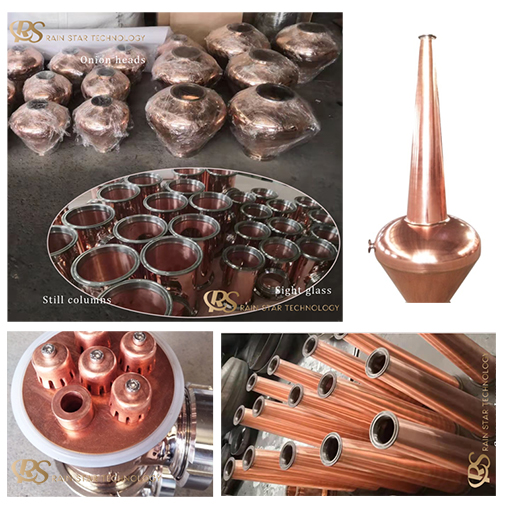

	Red copper onion head as options
	4 plates red copper/SUS304 still columns. Copper bubble caps plate
	SUS304 dephlegmator
	SUS304 condenser
	SUS304 parrot outlet, Tri clamp, seal ring, pipe fittings and valve SUS304
Heating method	Electric heating with element
Brand	Rain Star Technology

Cutomized specifications:

- Still pot: single layer, double layers or three layers.

- Copper head: onion head / Whiskey head / Cone head / Round head etc.

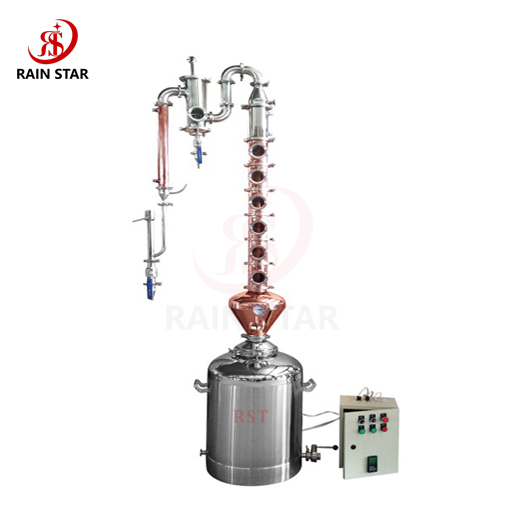

- Fittings: Gin basket, control box etc.

50L home distillery -505 05.jpg

Applications:

Home use / Retail / Restaurant / Wine Spirits Industry / Distillery factory / Food shop / Experiment Lab use / Hobby test

What can we do for wine still?
Distillery Style	Capacity	Consist of parts
Whiskey distiller	50L,100L,200L ~ Max.6000L	Still pot,Swan neck, Condenser,CIP Pump, Pipeline
Vodka distiller	50L,100L,200L ~ Max.6000L	Still pot,Onion head, Column,Dephlegmater,Condenser,Pipeline
Brandy distiller	50L,100L,200L ~ Max.6000L	Still pot,Onion head, Column,Dephlegmater,Condenser,Pipeline
Rum distiller	50L,100L,200L ~ Max.6000L	Still pot, Column,Condenser,CIP Pump, Pipeline
Gin distiller	50L,100L,200L ~ Max.6000L	Still pot, Column,Gin basket,Condenser,CIP pump, Pipeline
Multi-spirits distiller	50L,100L,200L ~ Max.6000L	Still pot,Column,Onion head,Dephlegmater,Gin basket,Condenser,CIP Pump,Pipeline,Spirit tank
