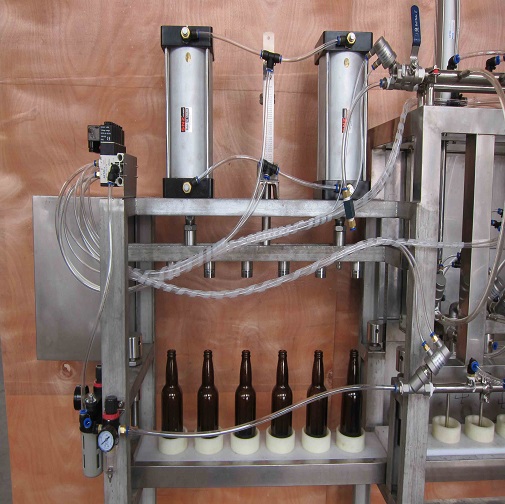

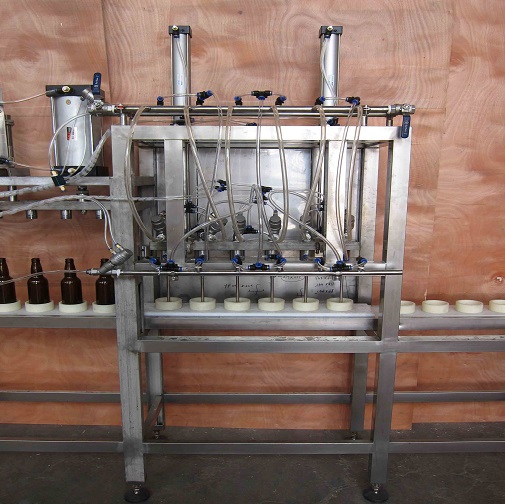

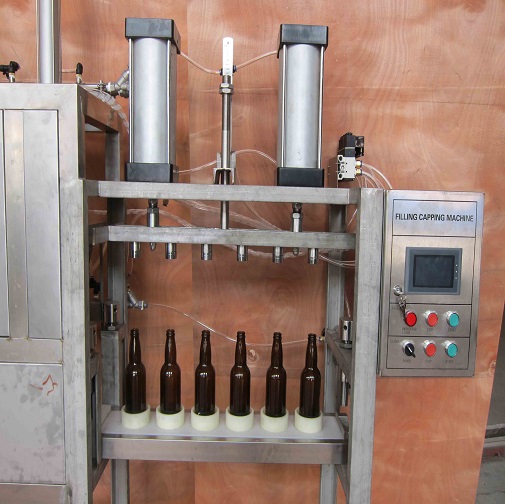

GZ-6P 6-head Semi-automatic Bottles Beer Filler and Capper

1.General Introduction


 is a Semi-automatic machine to fill beer into bottles  and capper the bottles., which have total 6 beer filling heads and 6 caps capping heads. The bottles need to be located on the panel of bottle filling manually, and then the whole filling process can be achieved automatic. When the beer full with the bottle, the filling process can stop automaticlly, and then manual move the bottles with beer to the area of capping unit.


Our bottle beer filler and capper can fill all sizes of  glass bottles (as per customized bottle sizes and type),  including 330ml, 500ml, 600ml, 800ml, and 1L etc.  The productive capacity of our bottle beer filler and capper can be adjusted from 380bottles to 450bottles for 500ml bottles.



2.Features of product


1. All parameters (time values) can be adjusted without stopping machine.

2. Six stations and six bottles can be filled and capped each time.

3. Filling and capping can be finished all-in-one machine.
4. Wine low lose,high work
 efficiency.

5. It can be customized according to diffent bottle types.

6. Germany Siemens controller with touch screen.

7.  Brand of components: SIMENS, AIRTAC, Schneider, etc.

8. With CO2 pressure backup function.

9. Equal pressure self-flow filling makes sure the same quanity.

10. It can be customize 4-8 head to finish filling and capping all-in-one machine.

1、Main Dimension and Size:

Outline Dimension:2350mm×600mm×1800mm
Cylinder Range:300mm
Net Weight:185kg
Filling Style:Po Position Fillingsitive
Capacity:380-450 bottles/h
Scope of Application Exposure Bottle:340ml 440ml  500ml  600ml

2、Technical Parameters

Wine Source Pressure: 0.12~0.15Mpa
Air Pressure:≥0.4Mpa
CO2 Pressure: ≥0.2Mpa
Cylinder Valve Pressure:0.3~0.4Mpa
CO2 Spare Pressure Valve: 0.1~0.15Mpa
