As a professional supplier, we are able to design and build a line of brewing equipment with capacity of 1bbl to 50bbl or bigger. Good performance and high quality as well as favorable price have brought many good sales reference in and abroad in the past years.
Brewing equipment Feature:
All tank body use food grade material stainless steel 304 with good welding. The configuration of our brewhouse, can be arranged to be with 2 or more vessels according to the customer beer craft, mash tun /lauter tun/Kettle tank/whirlpool tank can be combined using for serving your beer craft. In the fermentation system, that is dimple plate cooling method, all tanks will be tested pressure before delivery.
Main Specifications of our brewery equipment:
|Item Name||Specifications &Structure|

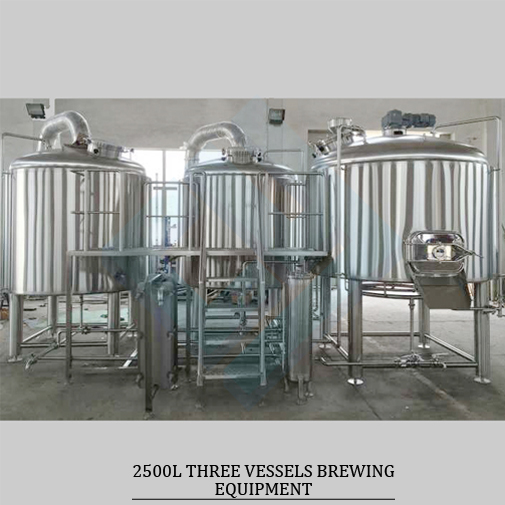

| 10BBL Three Vessels Brewing Equipment||Working Volume||2500L|
|Brewhouse Structure||3 vessels|
|Material||SUS304, food grade|
|Heating style||by electric, by gas fired or by steam|
|Thickness of Exterior shell||3mm|
|Thickness of Interior shell||2mm|
|Fermentation system||Fermenters, Bright tank, Glycol tank, and chiller etc.|
|Control system||Semi-automatic with manual butterfly valves|
|All necessary fittings||CIP cleaning ball, pressure guage, thermometer, Carbonating stone, and adjustable feets as well as all necessary accessories.|
|No. of vessels||2||3||4|
|Mash / Lauter Tun||■||■|
|Brew Kettle Tun||■|
|Hot Liquor Tank||■||■|
Packing & Delivery：
- Wooden case for LCL;
- Plastic film wrapped and iron frame fixing for FCL or others as per customers' requirement.
- Delivery time: 50~70 days after signing the drawing of brewing equipment.
